Rimadesio Graphis LIGHT

Graphis LIGHT Sliding DOORS

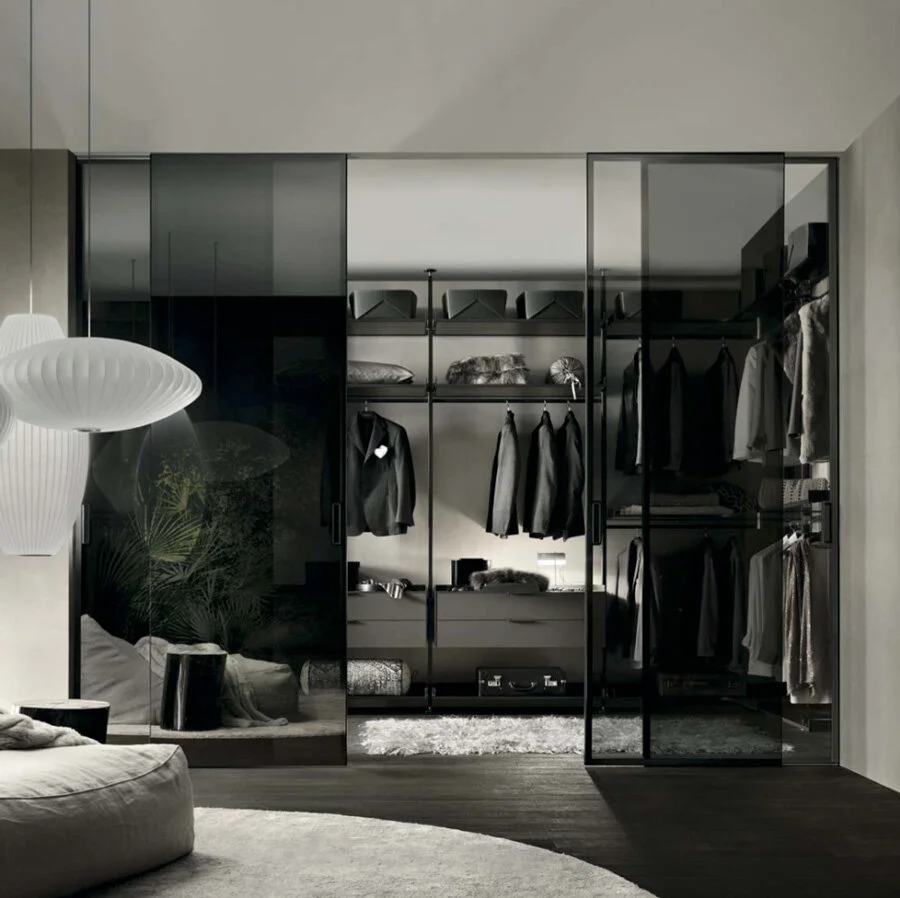

Rimadesio Graphis Light sliding doors are specially designed to close niches and walk-in dressing rooms. The ‘light’ means it is a single-sided glass panel with an aluminium structure which is perfectly dust-proof, thanks to an innovative perimeter joint.

As a subsequence of the lightweight construction, Graphis Light panels cannot be linked together for multiple sliding door configurations.
RIMADESIO GRAPHIS LIGHT FROM £4,600 + VAT*
Cost based on a 3-panel arrangement, H2400mm x W3000mm, hung from a 3 track flush-fit ceiling rail. Frame Structure and Handle - Aluminium / Glass - Transparent.
*Cost does not include specialist services and installation.

Components
1 Single tempered glass 4 mm thickness. The lacquered glass of Graphis light is not transparent. Nevertheless with strong lighting light colours are not perfectly darkened
2 Door panel structure in extruded aluminium
3 Metal built-in handle with tempered lacquered glass insert in the same finishing of the panel
4 Perimetral joint in silicon rubber
5 Dust-tight brushes in polypropylene
6 Aluminium side runner
7 Patented retractile floor pin
8 Sliding carriage

OPtions
Panel Dimensions
Every Rimadesio Graphis Light sliding door is custom made to meet the architectural requirements of the client property.
Sliding panel min-width 500mm / Fixed panel min-width 320mm - Max panel width of 1500mm
Maximum height of 2925mm
Handles
Single recessed handle

specification sheets
For further documentation to support the specification of a Rimadesio Graphis Light sliding doors, click on the button below.
OPTIONS, Materials and Colour Indexes - Graphis Light
Available Panel Finishes
Available Structural Finishes
